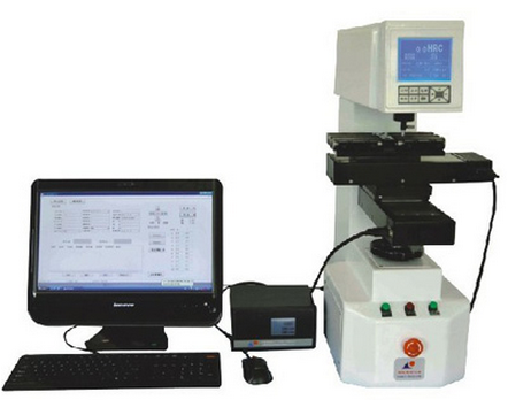

An automatic measurement of the maximum 6 end quench samples of the end quench test specimens (THSR-800J2: 2 end quench test specimens of the quench curve);

Measurement methods are divided into: General hardened steel, low hardened steel;

High degree of automation, automatic test process:

Automatic sample rise

Automatic application of initial and main testing force

Automatic measurement of hardness

Automatic moving sample for multiple point measurement

Position control accuracy, measuring position movement precision: 0.01 mm; operation precision: 0.01 mm;

The hardness tester is a digital display of the hardness tester, high precision, can be separated from the automatic system and the use of independent;

Single piece measurement, batch measurement, ASTM/ National Standard Hardness Conversion table;

Automatic super error alarm; display the unqualified parts number;

Sample minimum measurable thickness automatic display;

Hardness testing database query;

Automatic generation of test reports, and drawing the sample's hardening curve.
